Ultrasonic cleaning equipment for the pharmaceutical industry
The LAB series range of cleaning equipment is specially designed for cleaning delicate parts where deep cleaning is required without damaging the components to be cleaned. Their main use is intended for the medical sector, jewelry, electronics, optics, food... They are entirely manufactured in AISI 304 stainless steel for models up to 30 liters and from 30 to 75 liters they can be manufactured in AISI 316 stainless steel. All models have with synchronized ultrasound system, heating and timer for simple and intuitive use. The 6 to 30 liter models are specially designed to work on a table or laboratory bench.
Ultrasonic cleaning for the pharmaceutical industry
Rugged ultrasonic technology devices covers all laboratory ultrasound applications. Some of the use for these devices include, for example:
- Biology laboratories
- Chemistry laboratories
- Biotechnology laboratories
- Pharmacy laboratories
- Food industry laboratories
- Medical technology laboratories.
If you need an ultrasonic cleaner, DCM Ultrasonic is the right place for you. We have selected a wide variety of high-quality devices from our own manufacturing to offer you. With our personalized advice, we will work with you to find the perfect product that meets your needs.
CONTACT US AND WE WILL HELP YOU FIND THE BEST CLEANING SOLUTION
CONTACT US AND WE WILL HELP YOU FIND THE BEST CLEANING SOLUTION
Advantages of cleaning pharmaceutical parts with DCM Ultrasonic ultrasonic machines
Complete removal of residues and microscopic contaminants: Ultrasonic waves generate a controlled cavitation effect, allowing the removal of particles, drug residues, grease, biofilms and other contaminants invisible to the human eye. This is especially crucial in the cleaning of injectors, filters, filling nozzles, vials, capsules and stainless steel parts used in pharmaceutical production.
- Homogeneous cleaning on parts with complex geometry: Pharmaceutical components often have internal cavities, capillary holes and surfaces that are difficult to reach with traditional cleaning methods. Our ultrasonic systems guarantee complete penetration in all areas, ensuring uniform, residue-free decontamination.
- Compliance with regulations and quality standards: At DCM Ultrasonic, we manufacture equipment designed to comply with pharmaceutical industry regulations, such as GMP (Good Manufacturing Practices), FDA (Food and Drug Administration) and USP (United States Pharmacopeia). We use AISI 316L stainless steel materials and manufacturing processes that guarantee the absence of cross-contamination.
- Reduction in the use of chemicals and toxic waste: Thanks to ultrasonic action, the need to use aggressive chemical agents is significantly reduced. This minimizes operating costs, protects the environment and reduces the risk of chemical contamination in the manufacturing processes of medicines and medical devices.
- Disinfection and elimination of microorganisms: The ultrasonic cavitation process destroys bacteria, viruses and fungi, making it an ideal method for cleaning surgical instruments, drug packaging, production molds and pharmaceutical machinery parts. For total disinfection, our systems can be integrated with certified cleaning solutions and ultrapure water rinsing systems.
- Automation and reduction of manual intervention: DCM Ultrasonic machines can be integrated with automated loading, rinsing, drying and validation systems for the cleaning process, reducing operator intervention and ensuring maximum process repeatability. This prevents human error and ensures that each batch of parts meets the required standards.
Features - ultrasonic cleaning
- Series on table. 28kHz and 40kHz ultrasonic tanks with capacity from 6 liters to 30 liters. The tanks have a built-in electric heating system of between 200W and 500W depending on the model, and ultrasonic powers between 200W and 400W. All tanks come with a 3/8" drain
- Professional series. 28kHz and 40kHz ultrasonic tanks with a capacity of 50 liters and 75 liters. The tanks have a built-in electric heating system of between 1500W and 2250W depending on the model and ultrasonic powers between 500W and 800W. All tanks come with a 1/2" drain
Catalogue
Download our catalog with all the information about our technology, equipment and applications.
Can we help you with anything else?
Call without obligation at 960 26 36 65 or contact us through the form
Cleaning Equipment Comparison - Pharmaceutical industry
UCM 30SLView Product |
UCM 50SLView Product |
UCM 75SLView Product |

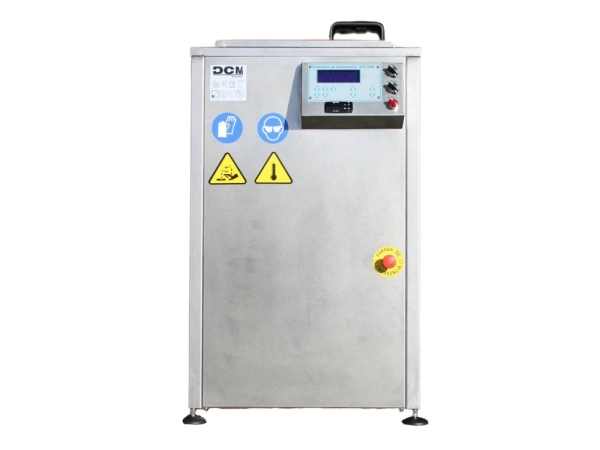

UCM 100SL LABView Product |
|
| Ultrasonic power (W) | 500 | 700 | 900 | 1000 |
| Heating power (W) | 500 | 1500 | 2250 | 2250 |
| Tank capacity (liters) | 39 | 50 | 75 | 107 |
| Interior measurements LxWxH (mm) | 450 x 400 x 220 | 450 x 400 x 280 | 450 x 400 x 420 | 510 x 500 x 420 |
| Maximum load (kg) | 50 | 50 | 75 | 100 |
