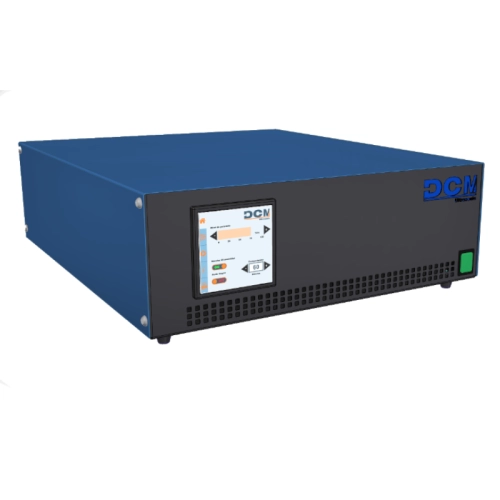

Ultrasonic generator
At DCM ultrasonic we have a wide range of patented synchronized digital generators to cover all of our customers' needs.
- Single: Generator up to 1,000W for tanks up to 150 liters.
- Dual: Generator up to 2,000W for tanks up to 250 liters.
- Triplex: Generator up to 3,000W for tanks up to 350 liters.
For greater power there is the possibility of mounting the generators in a 19" rack, in this case a master generator is installed equipped with the control and as many power stages as necessary that will be controlled and fully synchronized by the master. Through this system we can control up to 300,000W of ultrasonic power, being able to power tanks of up to 60,000 liters of water.
We also have a range of standard ultrasound emitters so you can build your own ultrasound tank or repair the existing one. If you don't find a size that fits your needs, we will custom make it for you.
We also have a range of standard ultrasound emitters so you can build your own ultrasound tank or repair the existing one. If you don't find a size that fits your needs, we will custom make it for you.
Characteristics
- Synchronize technology.
- Power control from 0 to 100%
- Frequency sweep.
- 4 oscillation modes.
Synchronized technology
Our generator has synchronized digital technology composed of a digital control that is responsible for sending a control signal to all power stages, thus avoiding interference phenomena that can occur in the bathroom due to lack of synchronism.
Power control 0 to 100%.
The DCM Ultrasonic range of generators is equipped with a progressive power control from 0% - 100% that allows the power to be adapted according to the use for which it is intended. Additionally, this allows us to make very progressive starts for special applications.
Frequency sweep
All the generators in the range have a frequency sweep whose function is to ensure that all the piezoelectric elements are excited and thus achieve greater performance and more homogeneous cavitation.
4 oscillation modes
The generators have 4 different oscillation modes through amplitude modulation, which allows them to be adapted to different types of use depending on the type of material to be treated, thus avoiding deterioration of the intensity of the ultrasonic field.
Programmable frequency
DCM Ultrasonic generators can be programmed in frequency, so that they can work at frequencies of 24kHz, 25kHz, 28kHz, 33kHz, 38kHz and 40kHz as standard. For other frequencies, contact us.
Impedance adjustment
Our generators have a mechanical impedance adaptation system, which allows you to adjust the total impedance of the system and ensure that all electrical energy is transformed into mechanical energy, turning them into truly efficient equipment.
Power ramp up digital adjustment
By adjusting the ramp up, we can control how long we want to reach the desired power. This feature is especially important when ultrasound is applied to foaming liquids, thus avoiding the formation of unwanted gas and avoiding an extremely rapid increase in pressure.
On/Off time setting
Our generators can work continuously without interruption or making a short stop during the work cycle. These working times are configurable and allow us to check the status of the generators during the stop and start them if any of them have stopped due to any circumstance.
RS-485 communication
Our generators have an RS-485 communications port and Modbus RTU communication protocol that allows remote monitoring and control of the generator. This is especially important when equipment is installed in industries where all processes are rigorously controlled.
Degas mode
The "Degas" mode is a special mode that is used to accelerate the degassing process of the bath (eliminate the air in solution), thus allowing the optimal state of the bath to be reached quickly and reducing electrical consumption by shortening the degassing time.
Machine series
Catalogue
Download our catalog with all the information about our technology, equipment and applications.
Can we help you with anything else?
Call without obligation at 960 26 36 65 or contact us through the form
COMPARISON TABLE
DCM GN SingleView Product |
DCM GN DuoView Product |
UCM GN TriplexView Product |
DCM GN MultiView Product |
|
| Maximum power (W) | 1000 | 2000 | 3000 | 33000 |
| Power control 0% - 100% | Yes | Yes | Yes | Yes |
| Frequency sweep | ±1 kHz | ±1 kHz | ±1 kHz | ±1 kHz |
| Oscillation modes | 4 | 4 | 4 | 4 |
| Multifrequency (kHz) | 24 ,25, 28, 33, 38, 40 | 24, 25, 28, 33, 38, 40 | 24, 25, 28, 33, 38, 40 | 24, 25, 28, 33, 38, 40 |
| Impedance adjustment | Yes | Yes | Yes | Yes |
| Ramp up setting (min) | 0 - 999 | 0 - 999 | 0 - 999 | 0 - 999 |
| On/Off time setting (min/sec) | 0 - 999 / 0 - 999 | 0 - 999 / 0 - 999 | 0 - 999 / 0 - 999 | 0 - 999 / 0 - 999 |
| Communications port | RS-485 Modbus RTU | RS-485 Modbus RTU | RS-485 Modbus RTU | RS-485 Modbus RTU |
| Interface | HMI 4" color touch | HMI 4" color touch | HMI 4" color touch | HMI 4" color touch |
