Catalogue

Generators & emitters

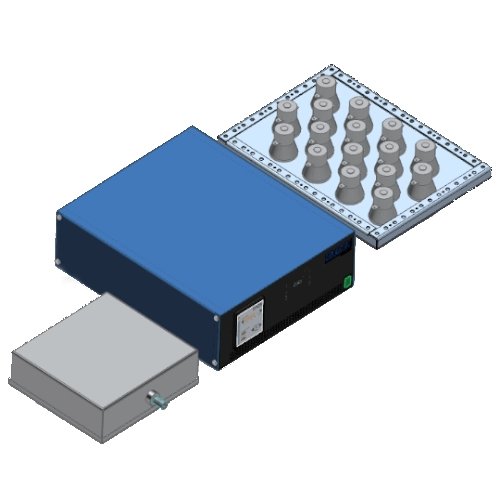

At DCM ultrasonic we have a wide range of patented synchronized digital generators to cover all the needs of our clients.
  • Single: Generator up to 1,000W for tanks up to 150 liters.
  • Dual: Generator up to 2,000W for tanks up to 250 liters.
  • Triplex: Generator up to 3,000W for tanks up to 350 liters.
For greater power there is the possibility of mounting the generators in a 19" Rack, in this case a master generator is installed equipped with the control and as many power stages as necessary that will be controlled and fully synchronized by the master. Through this system we can control up to 300,000W of ultrasonic power, being able to power tanks of up to 60,000 liters of water.
range of ultrasonic generators

Characteristics

Frequencies available for generators and emitters:
  • High power.
    • 24kHz, 25kHz, 28kHz
  • Low power.
    • 33kHz, 38kHz, 40kHz
Available powers for generators and emitters:
  • Maximum power per submersible type emitter 2000W
  • Maximum power per plate-type emitter up to 1000W
  • Ultrasonic generators from 60W to 300,000W
Generators EMITTERS

Machine series

Catalogue
Download our catalog with all the information about our technology, equipment and applications.
Can we help you with anything else?
Call without obligation at 960 26 36 65 or contact us through the form
Contact
Products

Equipment range

DCM GN Single

DCM GN Single

DCM GN Single
The DCM GN Single generator is a digital synchronized generator with a maximum power of 1000W (2000W peak to peak). It has a 4" color touch screen with a simple and intuitive interface. This generator is ideal for small tanks of up to 150L. The generator is equipped with an RS-485 communications port that allows control and parameterization from a PLC using the Modbus RTU communication standard. It also has an expansion connector that allows you to connect more generators in cascade to expand their power, always in a synchronized manner.

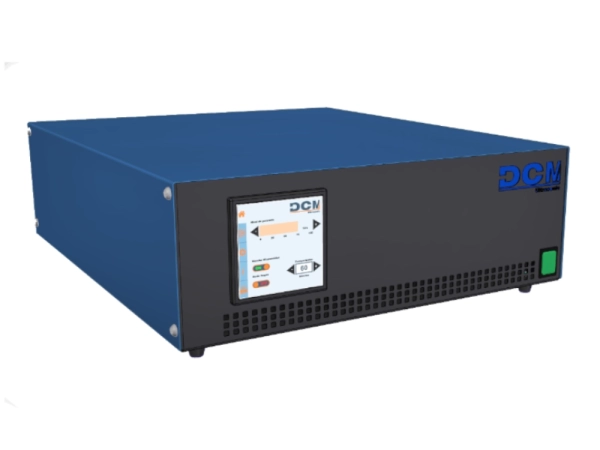

DCM GN Duo

DCM GN Duo

DCM GN Duo
The DCM GN Duo generator is a digital synchronized generator with a maximum power of 2000W (4000W peak to peak). It has a 4" color touch screen with a simple and intuitive interface. This generator is ideal for small tanks of up to 300L. The generator is equipped with an RS-485 communications port that allows control and parameterization from a PLC using the Modbus RTU communication standard. It also has an expansion connector that allows you to connect more generators in cascade to expand their power, always in a synchronized manner.
UCM GN Triplex

UCM GN Triplex

UCM GN Triplex
The DCM GN Triplex generator is a digital synchronized generator with a maximum power of 3000W (6000W peak to peak). It has a 4" color touch screen with a simple and intuitive interface. This generator is ideal for small tanks of up to 400L. The generator is equipped with an RS-485 communications port that allows control and parameterization from a PLC using the Modbus RTU communication standard. It also has an expansion connector that allows you to connect more generators in cascade to expand their power, always in a synchronized manner.

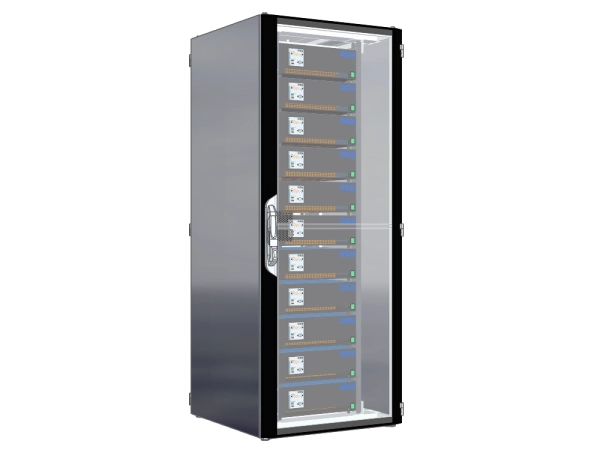

DCM GN Multi

DCM GN Multi

DCM GN Multi
The DCM GN multi generator is a synchronized digital generator that can be combined in multiple ways to achieve the desired power. Up to 11 synchronized 3,000W generators can be mounted in each Rack, which gives us 33,000W per Rack, and can be linked with others up to a maximum of 300,000W. Each Rack can be configured according to the customer's needs with a master and slave modules of 1000W, 2000W or 3000W. These being 100% synchronized through our patented technology. Sets can be composed in the following configurations: Rack 800x1200x800 (From 4 kW to 18 kW) Rack 800x2000x800 (From 11 kW to 33 kW)

Where to use our industrial ultrasonic devices

Work areas
Industrial cleaning

Industrial cleaning

Industrial ultrasonic cleaning. We effectively remove dirt and contaminants. Optimize hygiene and performance!
Laboratory

Laboratory

Effective ultrasonic equipment for cleaning laboratory components. Optimizes processes in the laboratory.
heat exchanger cleaning

heat exchanger cleaning

Cleaning of heat exchangers and other critical components. Efficiency and performance. Innovation for the petrochemical industry with ultrasonic equipment.
Food Industry

Food Industry

Enhance your food process with the versatility of ultrasound. Extraction, crystallization, filtration, emulsification and more. Increase efficiency and quality in every step of your production!
