Generators & emitters - Ultrasonic generator

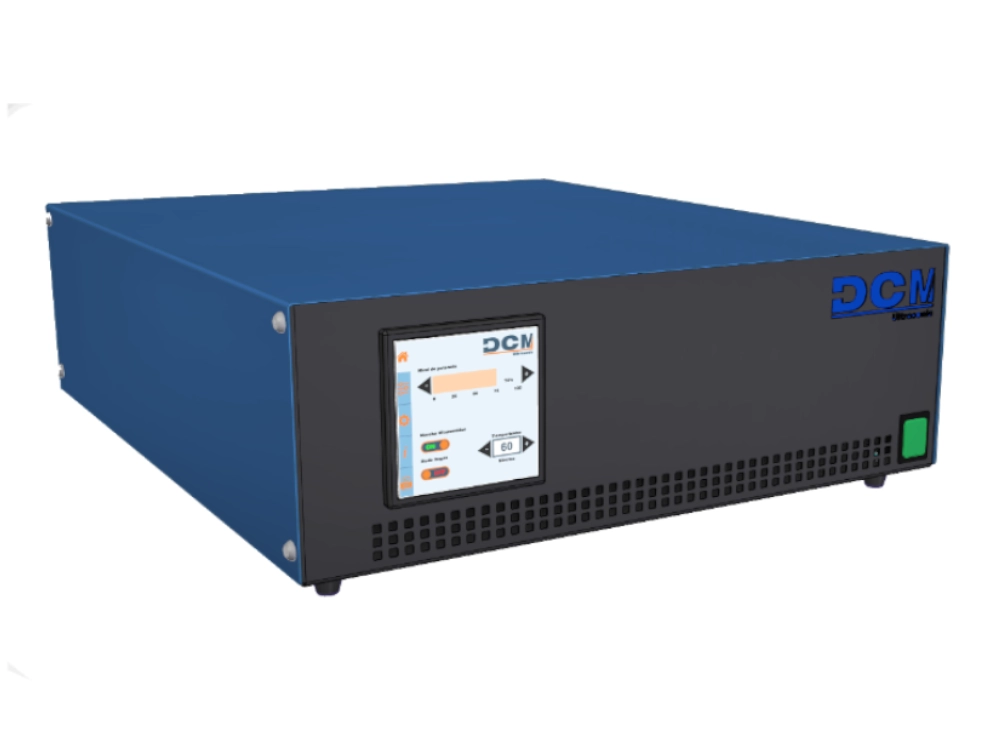

Ultrasonic Generator DCM GN Single

Technical characteristics

Maximum power (W)	1000
Power control 0% - 100%	Yes
Frequency sweep	±1 kHz
Oscillation modes	4
Multifrequency (kHz)	24 ,25, 28, 33, 38, 40
Impedance adjustment	Yes
Ramp up setting (min)	0 - 999
On/Off time setting (min/sec)	0 - 999 / 0 - 999
Communications port	RS-485 Modbus RTU
Interface	HMI 4" color touch

See technical sheet

Description

The DCM GN Single generator is a digital synchronized generator with a maximum power of 1000W (2000W peak to peak). It has a 4" color touch screen with a simple and intuitive interface. This generator is ideal for small tanks of up to 150L. The generator is equipped with an RS-485 communications port that allows control and parameterization from a PLC using the Modbus RTU communication standard.

It also has an expansion connector that allows you to connect more generators in cascade to expand their power, always in a synchronized manner.

Machine series

Catalogue

Download our catalog with all the information about our technology, equipment and applications.

Can we help you with anything else?

Call without obligation at 960 26 36 65 or contact us through the form

Contact

COMPARISON TABLE

	DCM GN Single View Product	DCM GN Duo View Product	UCM GN Triplex View Product	DCM GN Multi View Product
Maximum power (W)	1000	2000	3000	33000
Power control 0% - 100%	Yes	Yes	Yes	Yes
Frequency sweep	±1 kHz	±1 kHz	±1 kHz	±1 kHz
Oscillation modes	4	4	4	4
Multifrequency (kHz)	24 ,25, 28, 33, 38, 40	24, 25, 28, 33, 38, 40	24, 25, 28, 33, 38, 40	24, 25, 28, 33, 38, 40
Impedance adjustment	Yes	Yes	Yes	Yes
Ramp up setting (min)	0 - 999	0 - 999	0 - 999	0 - 999
On/Off time setting (min/sec)	0 - 999 / 0 - 999	0 - 999 / 0 - 999	0 - 999 / 0 - 999	0 - 999 / 0 - 999
Communications port	RS-485 Modbus RTU	RS-485 Modbus RTU	RS-485 Modbus RTU	RS-485 Modbus RTU
Interface	HMI 4" color touch	HMI 4" color touch	HMI 4" color touch	HMI 4" color touch
