Catalogue

RL Series

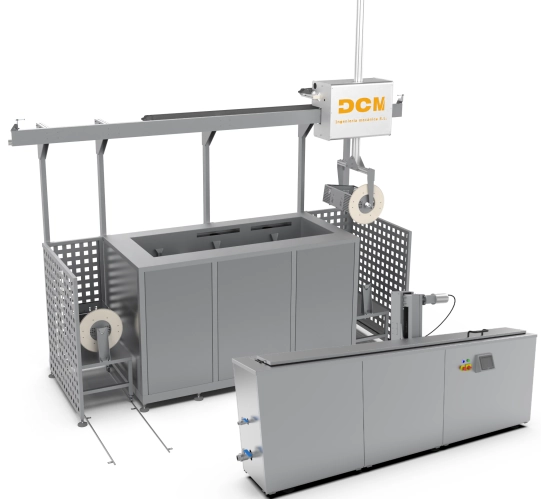

Ultrasonic cleaning machines RL (rotary loads) are specially designed for cleaning parts that require continuous rotary movement for effective cleaning. Within this series, we can find multistage automatic machines for mass production with the capacity to work up to 5 baskets simultaneously and machines specifically designed for cleaning ALINOX rollers with capacity for rollers weighing up to 500kg and simultaneous rotation and vertical movement. which allow both traditional surface cleaning and submerged roller cleaning, always in combination with the rotation movement to obtain a completely homogeneous cleaning.
RL Series

¿WHY CHOOSE DCM ULTRASONIC MACHINES?

  • Overflow: 3/4" overflow connected to the customer's installation to avoid possible product spills in case of excessive liquid level.
  • Integrated electrical panel: Integrated electrical panel with easy access to maintenance that makes the machine more compact and allows it to be installed close to the walls. (Depending on model)
  • Double-layer thermal-acoustic insulation: 50mm thick double-layer thermal and acoustic insulation (fireproof) that reduces noise emission while preventing heat loss and making the machine more environmentally friendly.
  • Integrated construction in AISI 304 / 316 stainless steel: The machine is entirely built in AISI 304 stainless steel and submersibles in AISI 316L. Optionally it can be built in AISI 316L.
  • Daily ECO mode: Heating programming in ECO mode that allows the temperature to be maintained throughout the night with minimal energy costs.
  • Oil separator: Oil separation system using laminar flow, consisting of a pump with an AISI 316L stainless steel body that removes the oil from the surface, preventing the parts from staining when leaving. (Depending on model)
  • V-Shape: V-shaped tank bottom that makes it easier to clean the tank and remove sludge.
  • Double welding system: Double internal and external welding of the entire tank that ensures maximum tightness and reliability of the tank.
  • Electrical resistances on the sides: Stainless steel electrical resistance located on the sides of the tank away from the bottom to prevent premature breakage due to sludge accumulation at the bottom.
  • Ultra-compact size: Ultra-compact design that allows the installation of the tank in very small spaces.
  • Integrated light beacon: Integrated light signaling beacon that allows you to know the status of the machine at all times even without being in its vicinity.
  • Heavy Duty: The robust construction of the DCM ultrasonic equipment makes our machines the ones that lift the most weight on the market, being able to clean really heavy loads.

Optionals

Filter

Filter
The filtering system extends the useful life of the bath, thus allows savings in cleaning product costs.

Automatic refillig

Automatic refillig
The automatic filling system is responsible for filling the evaporated water and thus avoiding damage due to dry work.

Automatic oil extraction

Automatic oil extraction
The automatic oil extraction system is responsible for emptying the oil when it accumulates in the auxiliary tank.

Steam extraction

Steam extraction
Steam extraction system for connected to the customer's installation. Prevents the dispersion of unwanted vapors.

Electric elevator

Electric elevator
The electric elevator system allows us great energy savings by not having to generate compressed air.

Automatic top lid

Automatic top lid
The automatic lid system allows you to open and close the lid automatically, making the use of the machine more comfortable.

Hybrid heating system

Hybrid heating system
The hybrid heating system connected to the client's hot water installation reduces energy consumption by 30%

Liquid detergent dosing

Liquid detergent dosing
The dosing system is responsible for filling the chemical product together with the automatic filling.

Hands free pedal

Hands free pedal
The hands-free pedal system allows you to operate the machine without having to touch the screen.

Tank built in AISI 316

Tank built in AISI 316
Tank and surfaces in contact with the chemical product manufactured in AISI 316.

Machine series

Catalogue
Download our catalog with all the information about our technology, equipment and applications.
Can we help you with anything else?
Call without obligation at 960 26 36 65 or contact us through the form

COMPARISON TABLE

5S UCM 250RL

5S UCM 250RL

View Product
UCM 500RL

UCM 500RL

View Product
UCM 750RL

UCM 750RL

View Product
Ultrasonic power (W)200040006000
Heating power (W)75001200012000
Tank capacity (liters)250510764
Rotating basket measurements LxWxHCustomized2548 x 400 x 5002548 x 600 x 500
Interior measurements LxWxH (mm)826 x 732 x 456Roller L2400 x Ø215Roller L2400 x Ø250
External measures LxWxH (mm)4800 x 1404 x 43003080 x 790 x 16003080 x 990 x 1600
Dynamic maximum load (kg)100500500
Static maximum load (kg)100500500
Products

Equipment range

5S UCM 250RL

5S UCM 250RL

5S UCM 250RL
Our standard RL (Rotating Loading) range has a pneumatic lifting platform with a load capacity of up to 500kg for roller cleaning equipment and a robot with a load capacity of up to 100kg for multistage equipment. The lifting platform has three main functions: Help with loading and unloading the parts to be cleaned Help cleaning in areas that are difficult to access by producing a slight movement of the fluid that helps eliminate the remains of dirt released. Prevent the action of the ultrasound from concentrating on one point and thus prevent the marking of the parts to be cleaned when they are made of soft metals such as aluminum or zamak. Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients day by day. PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption. Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings. Control system with PLC and HMI, the equipment has a PLC and an HMI color screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment. Complete construction in stainless steel, the equipment is built entirely in AISI 304L stainless steel with the exception of the ultrasonic emitters which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving a performance close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
UCM 500RL

UCM 500RL

UCM 500RL
Our standard RL (Rotating Loading) range has a pneumatic lifting platform with a load capacity of up to 500kg for roller cleaning equipment and a robot with a load capacity of up to 100kg for multistage equipment. The lifting platform has three main functions: Help with loading and unloading the parts to be cleaned Help cleaning in areas that are difficult to access by producing a slight movement of the fluid that helps eliminate the remains of dirt released. Prevent the action of the ultrasound from concentrating on one point and thus prevent the marking of the parts to be cleaned when they are made of soft metals such as aluminum or zamak. Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients day by day. PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption. Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings. Control system with PLC and HMI, the equipment has a PLC and an HMI color screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment. Complete construction in stainless steel, the equipment is built entirely in AISI 304L stainless steel with the exception of the ultrasonic emitters which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving a performance close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
UCM 750RL

UCM 750RL

UCM 750RL
Our standard RL (Rotating Loading) range has a pneumatic lifting platform with a load capacity of up to 500kg for roller cleaning equipment and a robot with a load capacity of up to 100kg for multistage equipment. The lifting platform has three main functions: Help with loading and unloading the parts to be cleaned Help cleaning in areas that are difficult to access by producing a slight movement of the fluid that helps eliminate the remains of dirt released. Prevent the action of the ultrasound from concentrating on one point and thus prevent the marking of the parts to be cleaned when they are made of soft metals such as aluminum or zamak. Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients day by day. PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption. Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings. Control system with PLC and HMI, the equipment has a PLC and an HMI color screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment. Complete construction in stainless steel, the equipment is built entirely in AISI 304L stainless steel with the exception of the ultrasonic emitters which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving a performance close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
