Catalogue

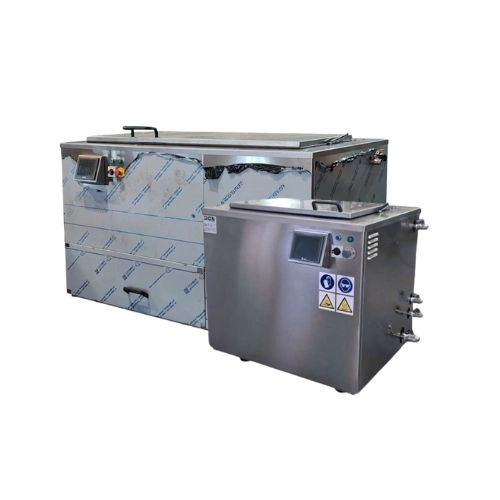

SL Series

The SL range (static charge) cleaning equipment is available in capacities ranging from 100 to 12,000 liters. They are designed to clean, degrease, strip, disinfect and descale all types of materials. All tank bottoms are equipped with a removable static platform designed and manufactured to withstand the maximum static loads shown in their characteristics table. Starting with the 1000L model, all units have automatic lid opening and closing. For smaller capacity units there is the option of installing an automatic lid. Some of the options for the entire SL range: automatic lid, steam extraction, automatic water filling, automatic detergent dispenser (liquid), filtration device to extend the life of the bath, automatic oil extraction, tank structure and parts in contact with chemicals built in AISI 316 stainless steel.
SL Series

¿WHY CHOOSE DCM ULTRASONIC MACHINES?

  • Overflow: 3/4" overflow connected to the customer's installation to avoid possible product spills in case of excessive liquid level.
  • Integrated electrical panel: Integrated electrical panel with easy access to maintenance that makes the machine more compact and allows it to be installed close to the walls.
  • Double-layer thermal-acoustic insulation: 50mm thick double-layer thermal and acoustic insulation (fireproof) that reduces noise emission while preventing heat loss and making the machine more environmentally friendly.
  • Integrated construction in AISI 304 / 316 stainless steel: The machine is entirely built in AISI 304 stainless steel and submersibles in AISI 316L. Optionally it can be built in AISI 316L.
  • Daily ECO mode: Heating programming in ECO mode that allows the temperature to be maintained throughout the night with minimal energy costs.
  • Oil separator: Oil separation system using laminar flow, consisting of a pump with an AISI 316L stainless steel body that removes the oil from the surface, preventing the parts from staining when leaving.
  • V-Shape: V-shaped tank bottom that makes it easier to clean the tank and remove sludge.
  • Double welding system: Double internal and external welding of the entire tank that ensures maximum tightness and reliability of the tank.
  • Electrical resistances on the sides: Stainless steel electrical resistance located on the sides of the tank away from the bottom to prevent premature breakage due to sludge accumulation at the bottom.
  • Ultra-compact size: Ultra-compact design that allows the installation of the tank in very small spaces.
  • Integrated light beacon: Integrated light signaling beacon that allows you to know the status of the machine at all times even without being in its vicinity.
  • Heavy Duty: The robust construction of the DCM ultrasonic equipment makes our machines the ones that lift the most weight on the market, being able to clean really heavy loads.

Optionals

Filter

Filter
The filtering system extends the useful life of the bath, thus allows savings in cleaning product costs.

AUtomatic refilling

AUtomatic refilling
The automatic filling system is responsible for filling the evaporated water and thus avoiding damage due to dry work.

Aotomatic oil extraction

Aotomatic oil extraction
The automatic oil extraction system is responsible for emptying the oil when it accumulates in the auxiliary tank.

Steam extraction

Steam extraction
Steam extraction system to connect to the customer's installation. Prevents the dispersion of unwanted vapors.

Electric elevator

Electric elevator
The electric elevator system allows us great energy savings by not having to generate compressed air.

Automatic top lid

Automatic top lid
The automatic lid system allows you to open and close the lid automatically, making the use of the machine more comfortable.

Hybrid heating system

Hybrid heating system
The hybrid heating system connected to the client's hot water installation reduces energy consumption by 30%

Liquid detergent dosing

Liquid detergent dosing
The dosing system is responsible for filling the chemical product together with the automatic filling.

Hands free pedal

Hands free pedal
The hands-free pedal system allows you to operate the machine without having to touch the screen.

Tank built in AISI 316

Tank built in AISI 316
Tank and surfaces in contact with the chemical product manufactured in AISI 316.

Machine series

Catalogue
Download our catalog with all the information about our technology, equipment and applications.
Can we help you with anything else?
Call without obligation at 960 26 36 65 or contact us through the form

COMPARISON TABLE

UCM 100SL

UCM 100SL

View Product
UCM 200SL

UCM 200SL

View Product
UCM 350SL

UCM 350SL

View Product
UCM 500SL

UCM 500SL

View Product
UCM 750SL

UCM 750SL

View Product
UCM 1000SL

UCM 1000SL

View Product
UCM 1200SL Flat

UCM 1200SL Flat

View Product
UCM 2000SL

UCM 2000SL

View Product
UCM 3000SL

UCM 3000SL

View Product
Ultrasonic power (W)10002000300040006000800080001000014000
Heating power (W)375037507500112501200015000150002250031500
Tank capacity (liters)1002114005467901120121523803105
Interior measurements LxWxH (mm)675 x 600 x 575700 x 550 x 5501010 x 660 x 6001400 x 600 x 6501370 x 800 x 7201550 x 850 x 8501700 x 1100 x 6501800 x 1150 x 11501800 x 1500 x 1150
Useful measures LxWxH (mm)570 x 365 x 435670 x 365 x 475980 x 510 x 5001360 x 680 x 5501320 x 750 x 6201500 x 800 x 7501650 x 1050 x 5101740 x 1150 x 8651740 x 1500 x 865
External measures LxWxH (mm)1150 x 745 x 9251250 x 950 x 11001610 x 1060 x 11251930 x 910 x 12001955 x 1100 x 12252135 x 1365 x 13002500 x 1410 x 11002710 x 1660 x 29752710 x 2110 x 2975
Static maximum load (kg)125175550105010501650165030003000
Products

Equipment range

UCM 100SL

UCM 100SL

UCM 100SL
Our standard SL (Static Load) range has a removable platform to facilitate cleaning and maintenance of the interior of the tank with a load capacity of up to 3000kg for machines of up to 3000 liters. For machines with greater capacity, contact us. All machines have the following characteristics: Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients every day. PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption. Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings. Control system with PLC and HMI, the equipment has a PLC and a color HMI screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment. Complete construction in stainless steel, the equipment is entirely built in AISI 304L stainless steel, except for the ultrasonic emitters, which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving an efficiency close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
UCM 200SL

UCM 200SL

UCM 200SL
Our standard SL (Static Load) range has a removable platform to facilitate cleaning and maintenance of the interior of the tank with a load capacity of up to 3000kg for machines of up to 3000 liters. For machines with greater capacity, contact us. All machines have the following characteristics: Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients every day. PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption. Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings. Control system with PLC and HMI, the equipment has a PLC and a color HMI screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment. Complete construction in stainless steel, the equipment is entirely built in AISI 304L stainless steel, except for the ultrasonic emitters, which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving an efficiency close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
UCM 350SL

UCM 350SL

UCM 350SL
Our standard SL (Static Load) range has a removable platform to facilitate cleaning and maintenance of the interior of the tank with a load capacity of up to 3000kg for machines of up to 3000 liters. For machines with greater capacity, contact us. All machines have the following characteristics: Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients every day. PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption. Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings. Control system with PLC and HMI, the equipment has a PLC and a color HMI screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment. Complete construction in stainless steel, the equipment is entirely built in AISI 304L stainless steel, except for the ultrasonic emitters, which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving an efficiency close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
UCM 500SL

UCM 500SL

UCM 500SL
Our standard SL (Static Load) range has a removable platform to facilitate cleaning and maintenance of the interior of the tank with a load capacity of up to 3000kg for machines of up to 3000 liters. For machines with greater capacity, contact us. All machines have the following characteristics: Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients every day. PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption. Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings. Control system with PLC and HMI, the equipment has a PLC and a color HMI screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment. Complete construction in stainless steel, the equipment is entirely built in AISI 304L stainless steel, except for the ultrasonic emitters, which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving an efficiency close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
UCM 750SL

UCM 750SL

UCM 750SL
Our standard SL (Static Load) range has a removable platform to facilitate cleaning and maintenance of the interior of the tank with a load capacity of up to 3000kg for machines of up to 3000 liters. For machines with greater capacity, contact us. All machines have the following characteristics: Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients every day. PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption. Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings. Control system with PLC and HMI, the equipment has a PLC and a color HMI screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment. Complete construction in stainless steel, the equipment is entirely built in AISI 304L stainless steel, except for the ultrasonic emitters, which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving an efficiency close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
UCM 1000SL

UCM 1000SL

UCM 1000SL
Our standard SL (Static Load) range has a removable platform to facilitate cleaning and maintenance of the interior of the tank with a load capacity of up to 3000kg for machines of up to 3000 liters. For machines with greater capacity, contact us. All machines have the following characteristics: Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients every day. PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption. Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings. Control system with PLC and HMI, the equipment has a PLC and a color HMI screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment. Complete construction in stainless steel, the equipment is entirely built in AISI 304L stainless steel, except for the ultrasonic emitters, which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving an efficiency close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
UCM 1200SL Flat

UCM 1200SL Flat

UCM 1200SL Flat
Our standard SL (Static Load) range has a removable platform to facilitate cleaning and maintenance of the interior of the tank with a load capacity of up to 3000kg for machines of up to 3000 liters. For machines with greater capacity, contact us. All machines have the following characteristics: Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients every day. PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption. Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings. Control system with PLC and HMI, the equipment has a PLC and a color HMI screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment. Complete construction in stainless steel, the equipment is entirely built in AISI 304L stainless steel, except for the ultrasonic emitters, which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving an efficiency close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
UCM 2000SL

UCM 2000SL

UCM 2000SL
Our standard SL (Static Load) range has a removable platform to facilitate cleaning and maintenance of the interior of the tank with a load capacity of up to 3000kg for machines of up to 3000 liters. For machines with greater capacity, contact us. All machines have the following characteristics: Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients every day. PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption. Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings. Control system with PLC and HMI, the equipment has a PLC and a color HMI screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment. Complete construction in stainless steel, the equipment is entirely built in AISI 304L stainless steel, except for the ultrasonic emitters, which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving an efficiency close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
UCM 3000SL

UCM 3000SL

UCM 3000SL
Our standard SL (Static Load) range has a removable platform to facilitate cleaning and maintenance of the interior of the tank with a load capacity of up to 3000kg for machines of up to 3000 liters. For machines with greater capacity, contact us. All machines have the following characteristics: Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients every day. PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption. Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings. Control system with PLC and HMI, the equipment has a PLC and a color HMI screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment. Complete construction in stainless steel, the equipment is entirely built in AISI 304L stainless steel, except for the ultrasonic emitters, which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving an efficiency close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
