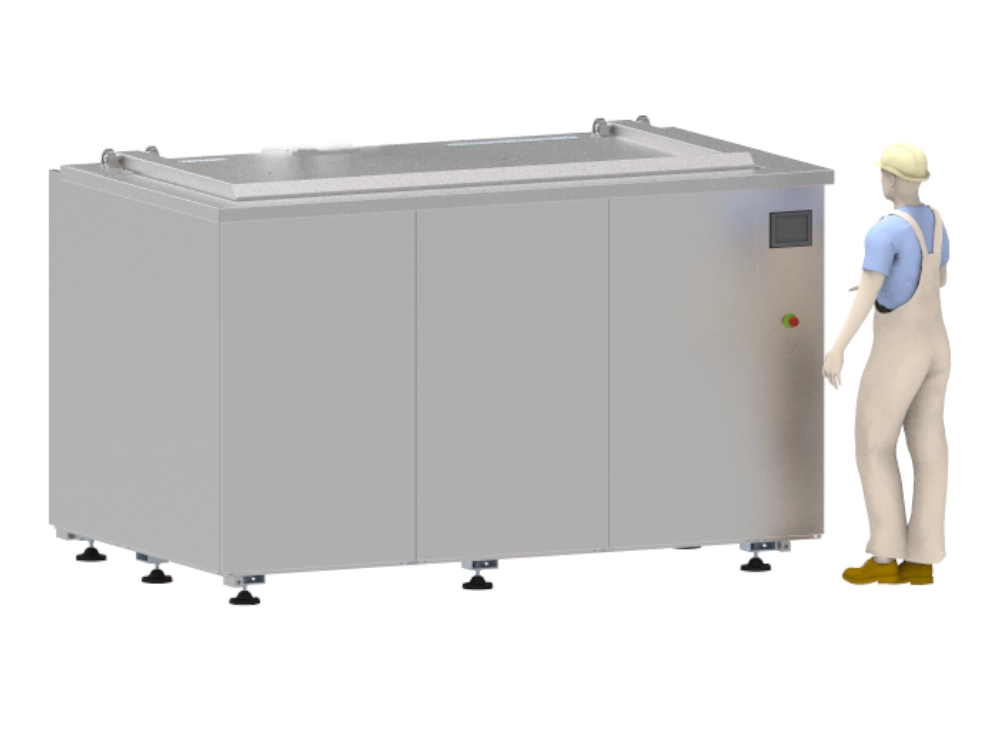

Ultrasonido UCM 2000SL
Technical characteristics
Ultrasonic power (W) | 10000 |
Heating power (W) | 22500 |
Tank capaity (liters) | 2380 |
interior measurements LxWxH(mm) | 1800 x 1150 x 1150 |
Useful measures LxWxH (mm) | 1740 x 1150 x 865 |
Inner measurements LxWxH (mm) | 2710 x 1660 x 2975 |
Maximum static load (kg) | 3000 |
Description
Our standard SL (Static Load) range has a removable platform to facilitate cleaning and maintenance of the interior of the tank with a load capacity of up to 3000kg for machines of up to 3000 liters. For machines with greater capacity, contact us. All machines have the following characteristics:
Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients every day.
PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption.
Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings.
Control system with PLC and HMI, the equipment has a PLC and a color HMI screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment.

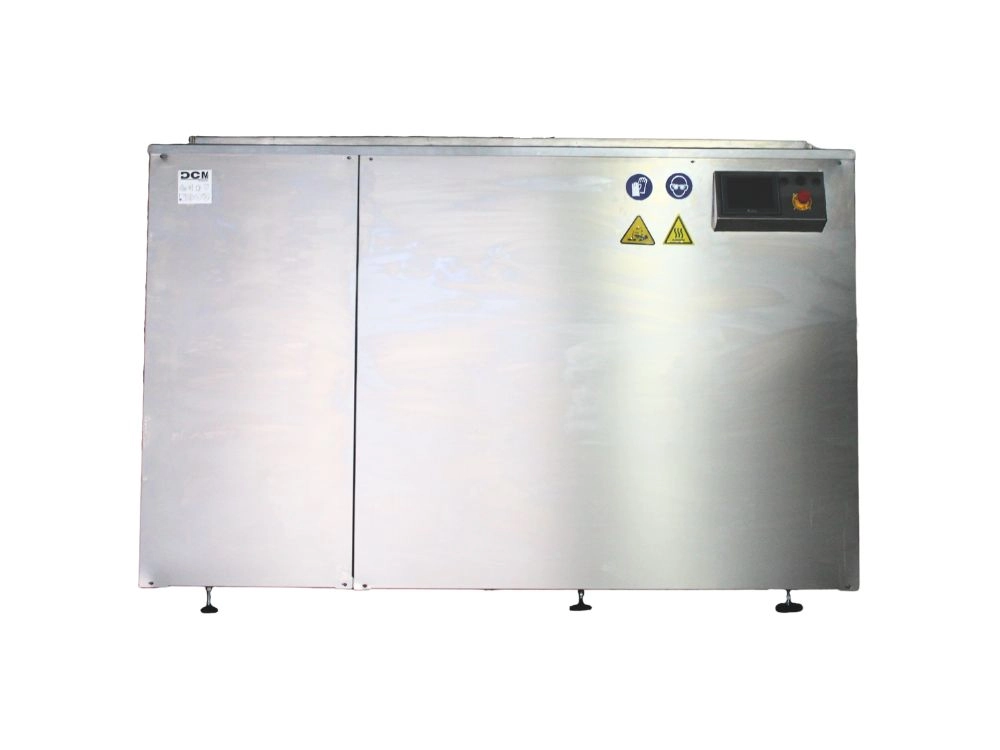

Complete construction in stainless steel, the equipment is entirely built in AISI 304L stainless steel, except for the ultrasonic emitters, which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving an efficiency close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
Synchronized digital generators, at DCM ultrasonic we have developed our own synchronized digital generator with a working frequency from 24 to 40kHz, thus allowing us to select the best frequency depending on the use. Our generator is the result of more than 10 years of experience in ultrasonic cleaning, seeing the needs of our clients every day.
PZT4 piezoelectric transducers, made in Japan carefully selected to offer the highest possible performance. There are many manufacturers and models of piezoelectric transducers on the market, but not all of them behave in the same way. At DCM ultrasonic we carried out a study with more than 15 different models until we found the one that offered the highest performance in combination with our generator. This has allowed us to obtain very high cavitation levels with very low consumption.
Thermal acoustic insulation, which prevents heat loss during the operation of our equipment, maintaining the temperature, thus avoiding unnecessary heating and cooling cycles that directly lead to lower electricity consumption and economic savings.
Control system with PLC and HMI, the equipment has a PLC and a color HMI screen from where you can easily control the entire machine with a very intuitive menu. The equipment has an Ethernet communications port, thus allowing remote monitoring and management of the equipment.
Complete construction in stainless steel, the equipment is entirely built in AISI 304L stainless steel, except for the ultrasonic emitters, which are made of AISI 316L stainless steel. The thickness of the tank and the ultrasonic emitters have been carefully selected to ensure a long useful life and obtain the best possible resonance of the system, thus achieving an efficiency close to 98%, which means that all the electrical energy used to generate the Ultrasound is delivered mechanically to the tank, thus reducing energy losses in the form of heat.
Machine series
Catalogue
Download our catalog with all the information about our technology, equipment and applications.
Can we help you with anything else?
Call without obligation at 960 26 36 65 or contact us through the form
COMPARISON TABLE
UCM 2000SLView Product |
UCM 100SLView Product |
UCM 200SLView Product |
UCM 350SLView Product |
UCM 500SLView Product |
UCM 750SLView Product |
UCM 1000SLView Product |
UCM 1200SL FlatView Product |
UCM 3000SLView Product |
|
Ultrasonic power (W) | 10000 | 1000 | 2000 | 3000 | 4000 | 6000 | 8000 | 8000 | 14000 |
Heating power (W) | 22500 | 3750 | 7500 | 7500 | 11250 | 12000 | 15000 | 15000 | 31500 |
Tank capacity (liters) | 2380 | 110 | 211 | 400 | 546 | 790 | 1120 | 1215 | 3105 |
Interior measurements LxWxH (mm) | 1800 x 1150 x 1150 | 600 x 395 x 465 | 675 x 600 x 575 | 1010 x 660 x 600 | 1400 x 600 x 650 | 1370 x 800 x 720 | 1550 x 850 x 850 | 1700 x 1100 x 650 | 1800 x 1500 x 1150 |
Useful measures LxWxH (mm) | 1740 x 1150 x 865 | 570 x 365 x 435 | 670 x 365 x 475 | 980 x 510 x 500 | 1360 x 680 x 550 | 1320 x 750 x 620 | 1500 x 800 x 750 | 1650 x 1050 x 510 | 1740 x 1500 x 865 |
External measures LxWxH (mm) | 2710 x 1660 x 2975 | 1150 x 745 x 925 | 1250 x 950 x 1100 | 1610 x 1060 x 1125 | 1930 x 910 x 1200 | 1955 x 1100 x 1225 | 2135 x 1365 x 1300 | 2500 x 1410 x 1100 | 2710 x 2110 x 2975 |
Static maximum load (kg) | 3000 | 125 | 175 | 550 | 1050 | 1050 | 1650 | 1650 | 3000 |
