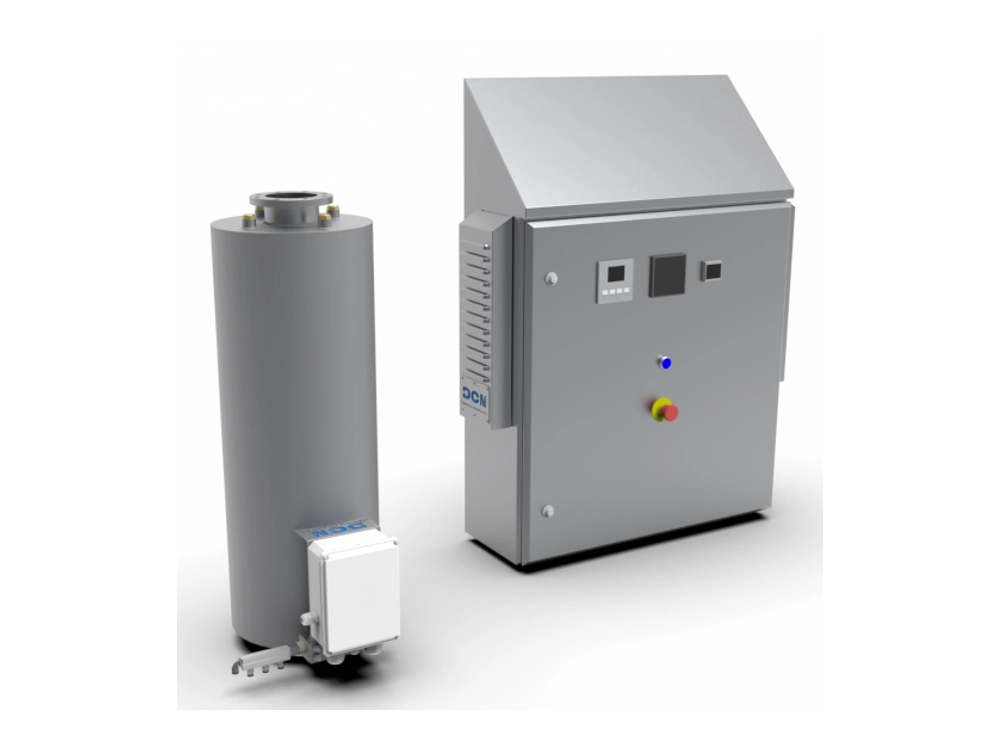

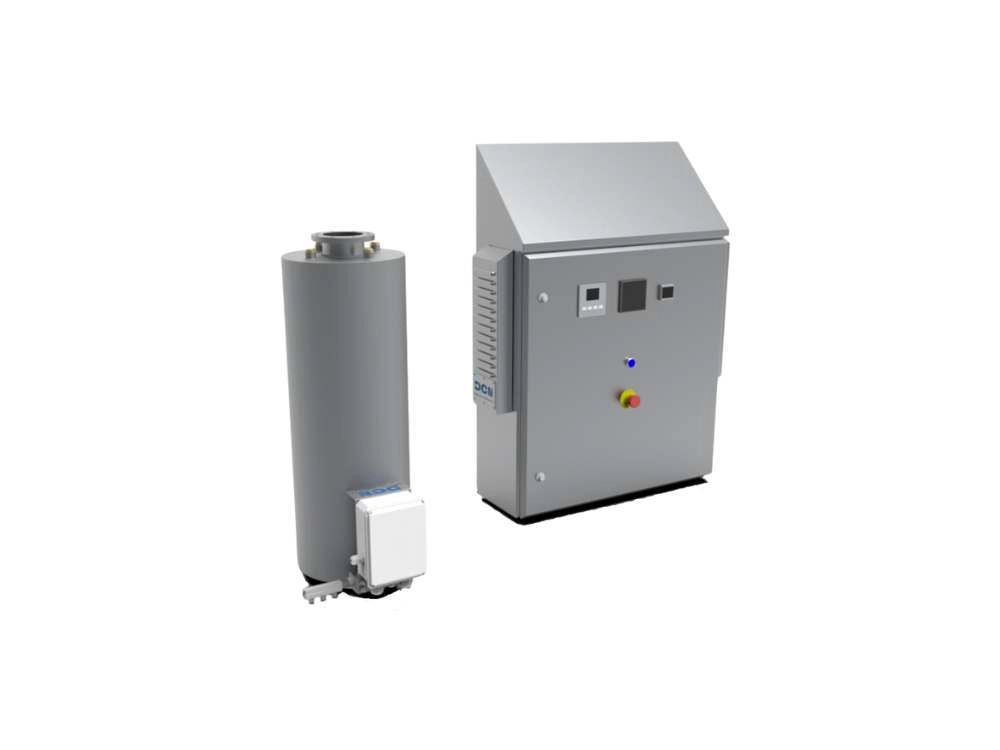

Flow cell 4kW

Technical characteristics

Exterior dimensions LxWxH (mm)	1852 x 442 x 310
Maximum consumption (kVA)	4
Working frequency (kHz)	24 - 25 - 28 - 33
IP protection class	54
Fluid temperature (ºC)	5 - 25
Maximum system temperature (ºC)	65
Maximum working pressure (bar)	3
Pressure inlet for cooling (bar)	5.5
Communication protocol	Modbus RS 485 RTU

See technical sheet

Description

The flow cells have been specially designed for use in the food industry sector. This device is inserted directly into the client's installation by passing the food fluid through it, subjecting it to an intense high-power ultrasound field that modifies the physical properties without modifying the flavour or aroma of the product. The applications of this device are multiple, such as the acceleration of the processes of fermentation, sterilization, pasteurization, uperisation, crystallization... with the great advantage of not raising the temperature of the product, which translates into significant energy savings as well as the time, thus increasing productivity by high percentages.

Catalogue

Download our catalog with all the information about our technology, equipment and applications.

Can we help you with anything else?

Call without obligation at 960 26 36 65 or contact us through the form

Contact

COMPARISON TABLE

	Flow cell 4kW View Product	Flow cell 2kW View Product
Exterior dimensions LxWxH (mm)	1852 x 442 x 310	926 x 442 x 310
Maximum consumption (kVA)	4	2
Work frequency (kHz)	24 - 25 - 28 - 33	24 - 25 - 28 - 33
IP protection clas	54	54
Fluid temperature (ºC)	5 - 25	5 - 25
Maximum system temperature (ºC)	65	65
Maximum working pressure (bar)	3	3
Pressure inlet for cooling (bar)	5.5	5.5
Communication protocol	Modbus RS 485 RTU	Modbus RS 485 RTU

Products

Equipment range

Flow cell 2kW

The flow cells have been specially designed for use in the food industry sector. This device is inserted directly into the client's installation by passing the food fluid through it, subjecting it to an intense high-power ultrasound field that modifies the physical properties without modifying the flavor or aroma of the product. The applications of this device are multiple, such as the acceleration of the processes of fermentation, sterilization, pasteurization, uperisation, crystallization... with the great advantage of not raising the temperature of the product, which translates into significant energy savings as well as the time, thus increasing productivity by high percentages.
