2 kW flow cell

Flow cell for fluid treatment DCM Ultrasonic

Technical characteristics

Exterior dimensions LxWxH (mm)	926 x 442 x 310
Maximum consumption (kVA)	2
Work frequency (kHz)	24 - 25 - 28 - 33
IP protection clas	54
Fluid temperature (ºC)	5 - 25
Maximum system temperature (ºC)	65
Maximum working pressure (bar)	3
Pressure inlet for cooling (bar)	5.5
Communication protocol	Modbus RS 485 RTU

See technical sheet

Description

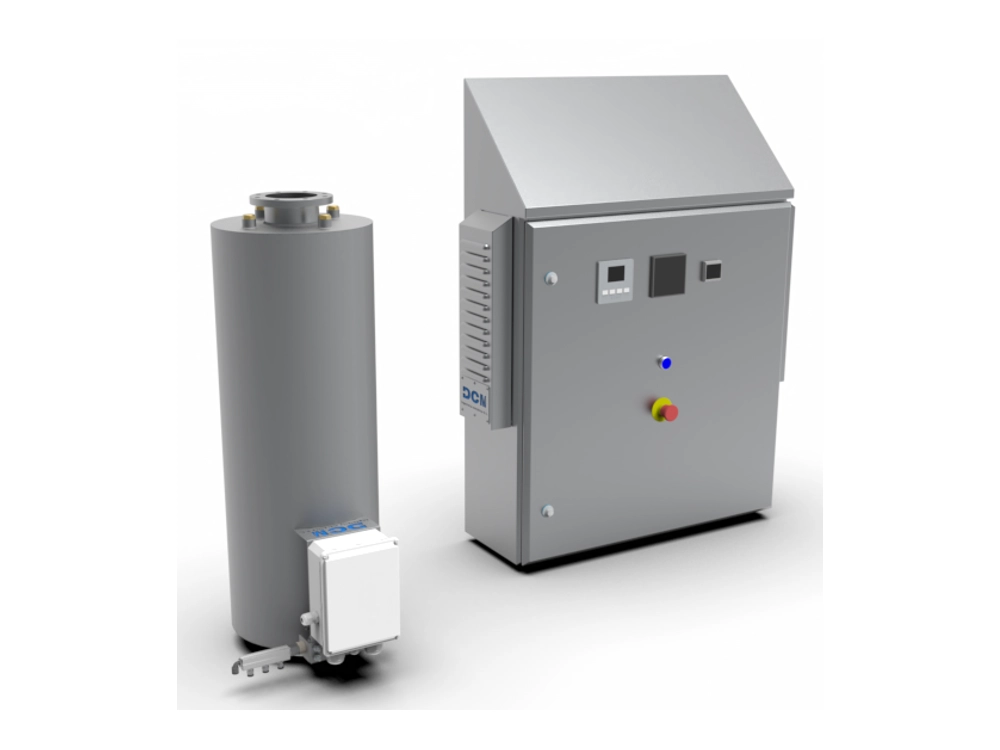

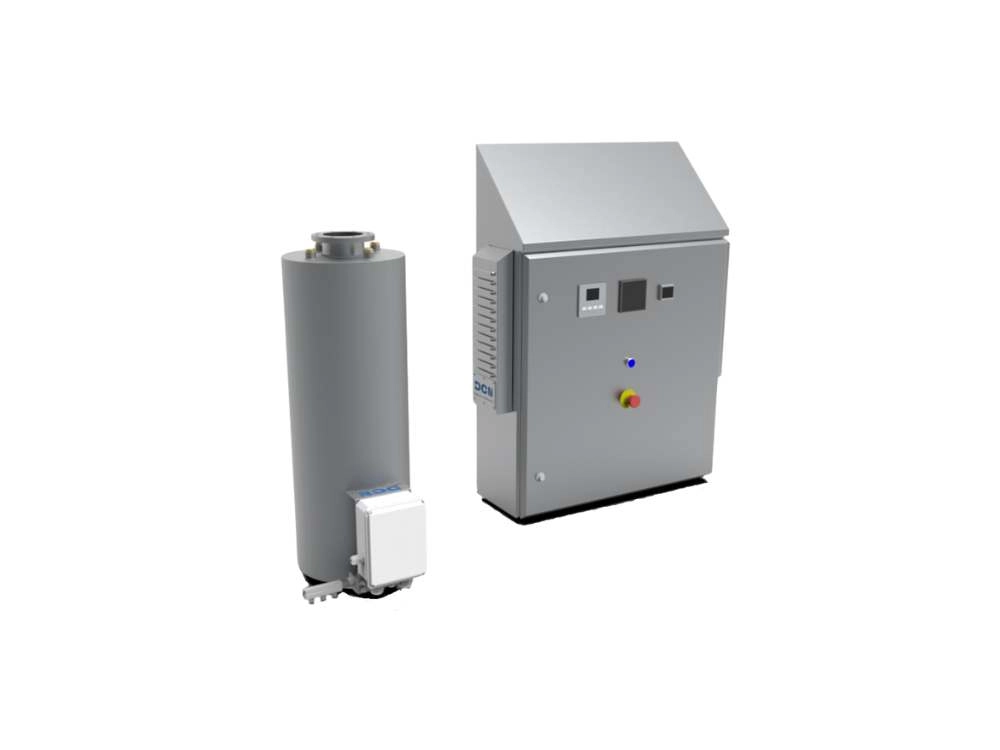

The 2 kW flow cell has been specially designed for use in the food industry and the biogas sector. This device subjects fluids to an intense, high-power ultrasound field that alters their physical properties without affecting the fluid’s taste, composition or aroma.

Download the technical data sheet for more information on the 2 kW flow cell.

Main applications of this flow cell:

Acceleration of fermentation processes
Improvement of biogas production
Sterilisation, pasteurisation, ultra-pasteurisation and crystallisation processes
Treatment and disinfection of fluids

Machine series

Catalogue

Download our catalog with all the information about our technology, equipment and applications.

Can we help you with anything else?

Call without obligation at 960 26 36 65 or contact us through the form

Contact

COMPARISON TABLE

	Flow cell 2 kW View Product	Flow cell 4 kW View Product
Exterior dimensions LxWxH (mm)	926 x 442 x 310	1852 x 442 x 310
Maximum consumption (kVA)	2	4
Work frequency (kHz)	24 - 25 - 28 - 33	24 - 25 - 28 - 33
IP protection clas	54	54
Fluid temperature (ºC)	5 - 25	5 - 25
Maximum system temperature (ºC)	65	65
Maximum working pressure (bar)	3	3
Pressure inlet for cooling (bar)	5.5	5.5
Communication protocol	Modbus RS 485 RTU	Modbus RS 485 RTU
