Ultrasonic Defoamer Cleaner for Packaging Lines
Technical characteristics
| Ultrasonic Power (W) | 300 |
| Frequency (KHz) | 20 |
| Generator included | NexTgen |
| Emitter External Dimensions (LxWxH) | 418 x 76 x 173 |
| Generator External Dimensions (LxWxH) | 380 x 380 x 210 |
| Emitter/Generator Total Weight (KG) | 6/15.4 |
See technical sheet
Description

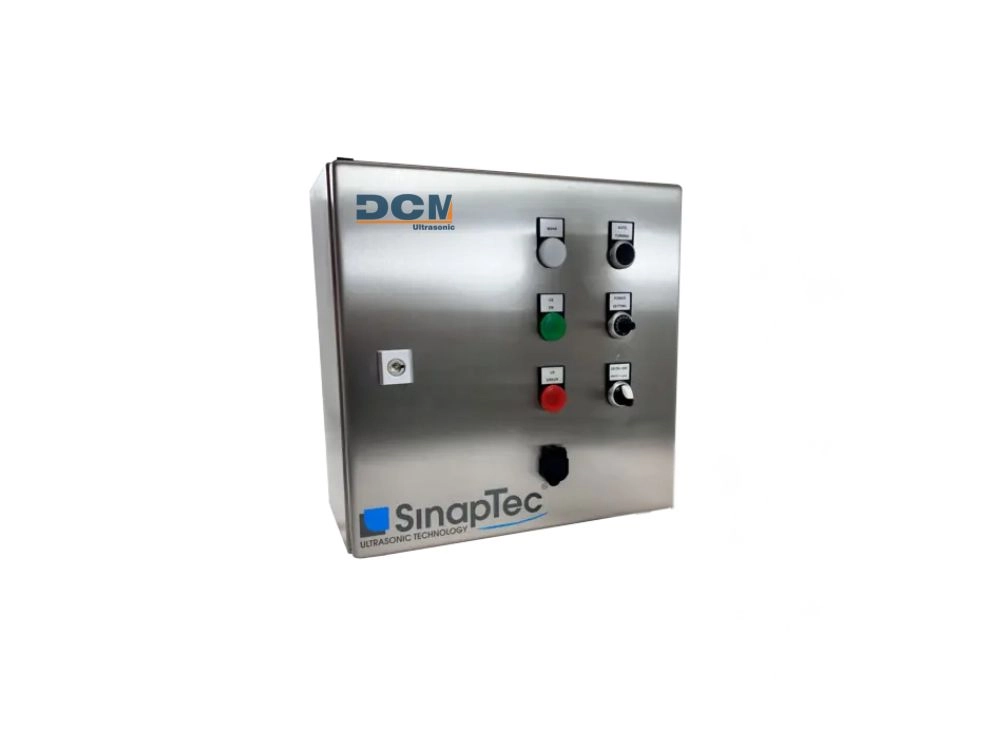

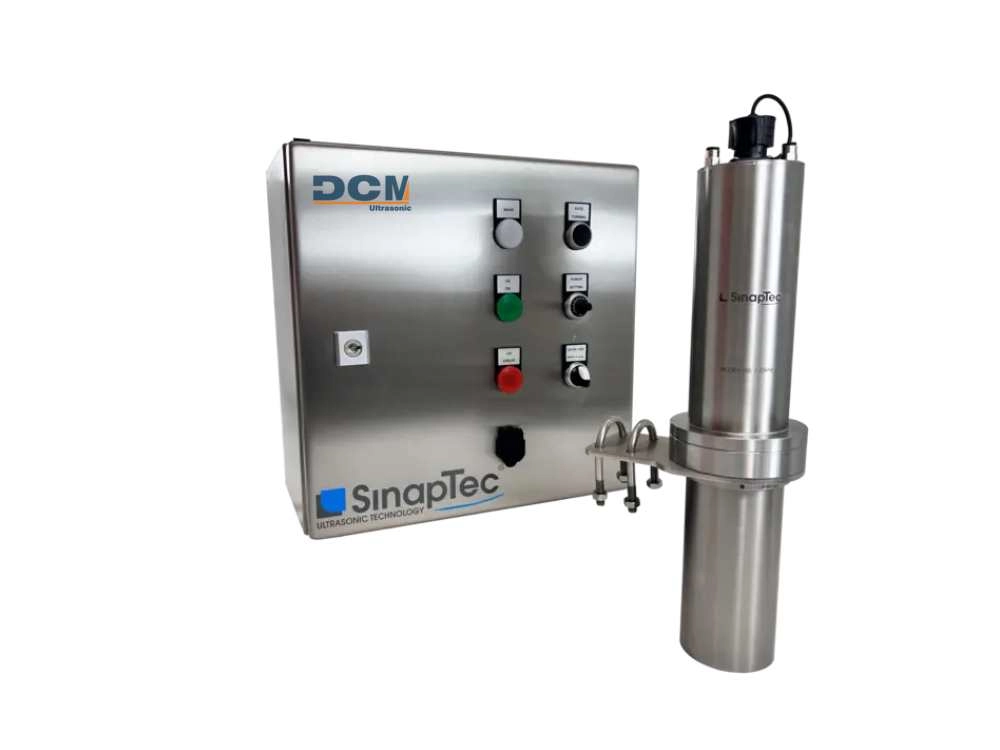

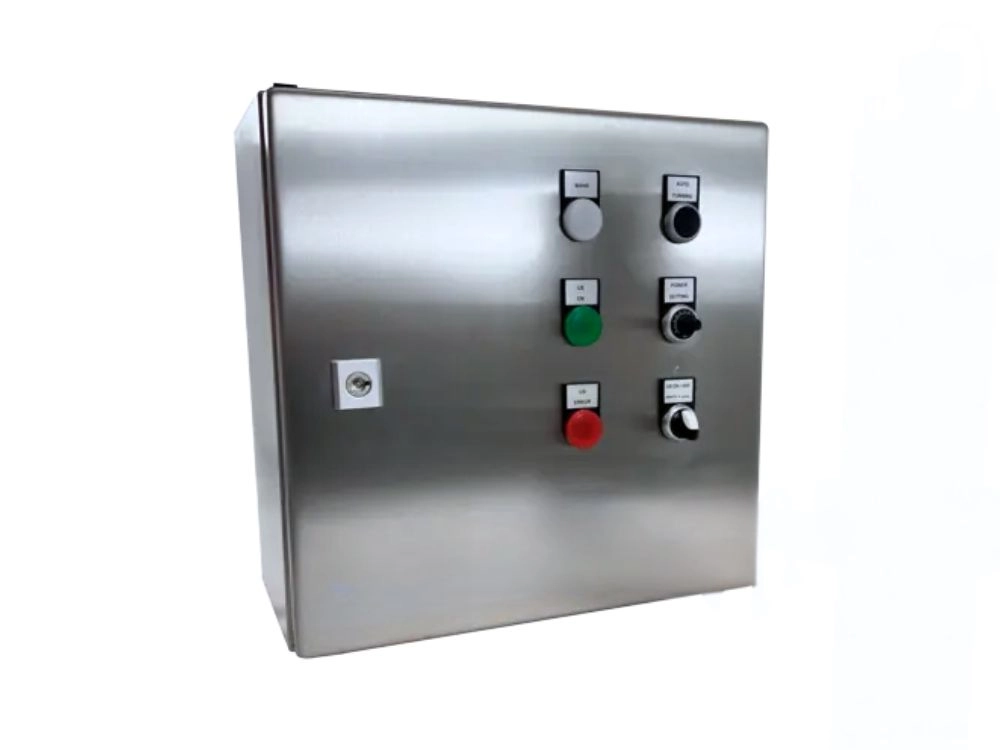

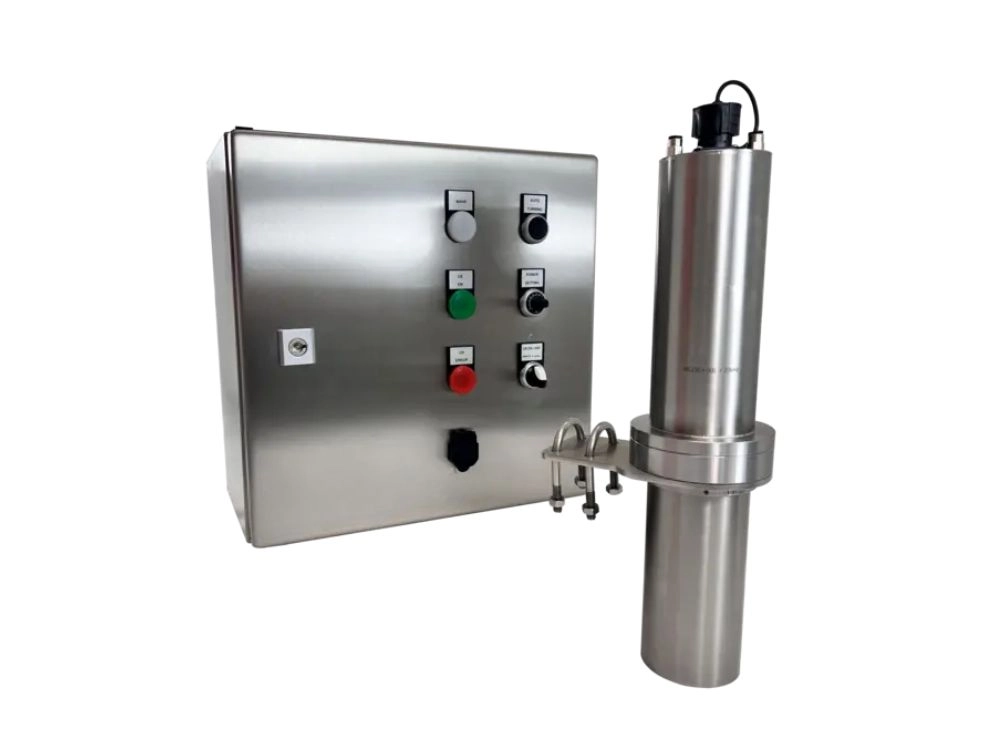

The NexTgen UDM 20K defoaming system can be configured to drive piezoelectric transducers operating in a frequency range from a few kilohertz up to 100 kHz and with a power output of up to 3000 W. Defoaming system for foam control in bottling processes or packaging lines. Some of the main features of this system are:- LED colours indicating the generator status
- Ultrasonic generator with various control interfaces
- Foam control using ultrasonic technology
- Free version of the NexTgen Start software
- Power and frequency configurable via software
- Duration and cycles configurable via software
- Event and data logging
Communication options
The PLC communication option provides access to NexTgen’s features via an Ethernet or RS485 network and is controlled via a PLC or an operator display. Via the network, it is possible to configure the ultrasonic cycle, control the frequency and power, and use the diagnostic functions.
Machine series
Catalogue
Download our catalogue: ultrasonic technology, applications and cleaning machines.
Can we help you with anything else?
Call without obligation at 960 26 36 65 or contact us through the form
Comparison Table
UDM 20K NexTgenView Product |
UDM 30K NexTgenView Product |
|
| Ultrasonic Power (W) | 300 | 300 |
| Frequency (KHz) | 20 | 30 |
| Generator included | NexTgen | NexTgen |
| Emitter External Dimensions (LxWxH) | 418 x 76 x 173 | 418 x 76 x 173 |
| Generator External Dimensions (LxWxH) | 380 x 380 x 210 | 380 x 380 x 210 |
| Emitter/Generator Total Weight (KG) | 6/15.4 | 6/15.4 |
