Ultrasonic Defoamer for Production Lines

Description

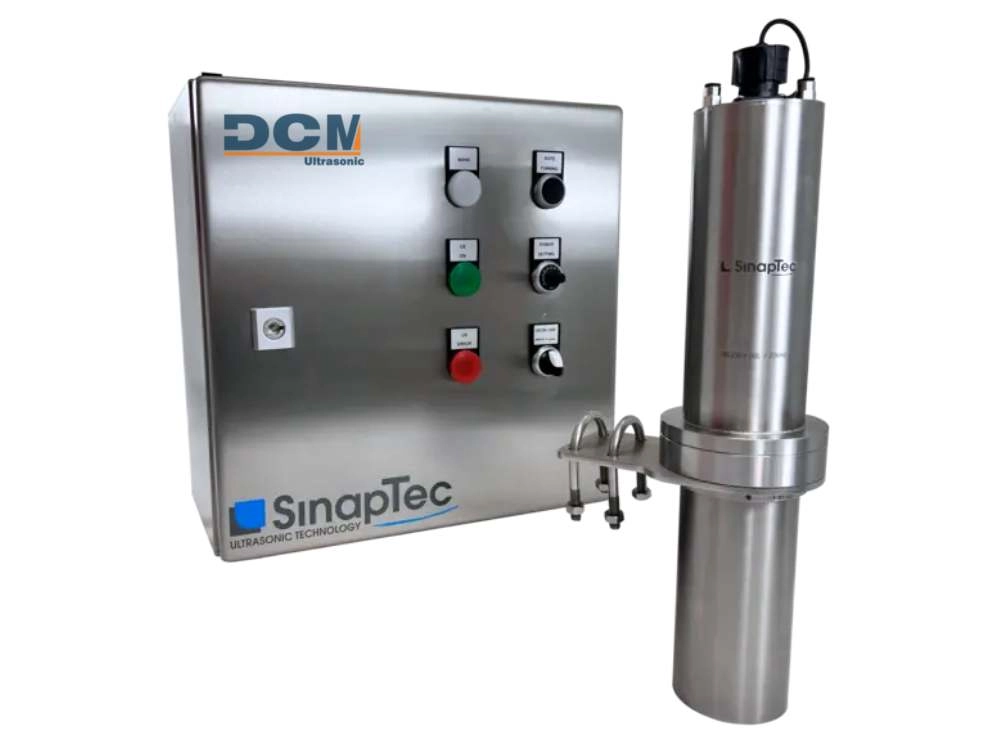

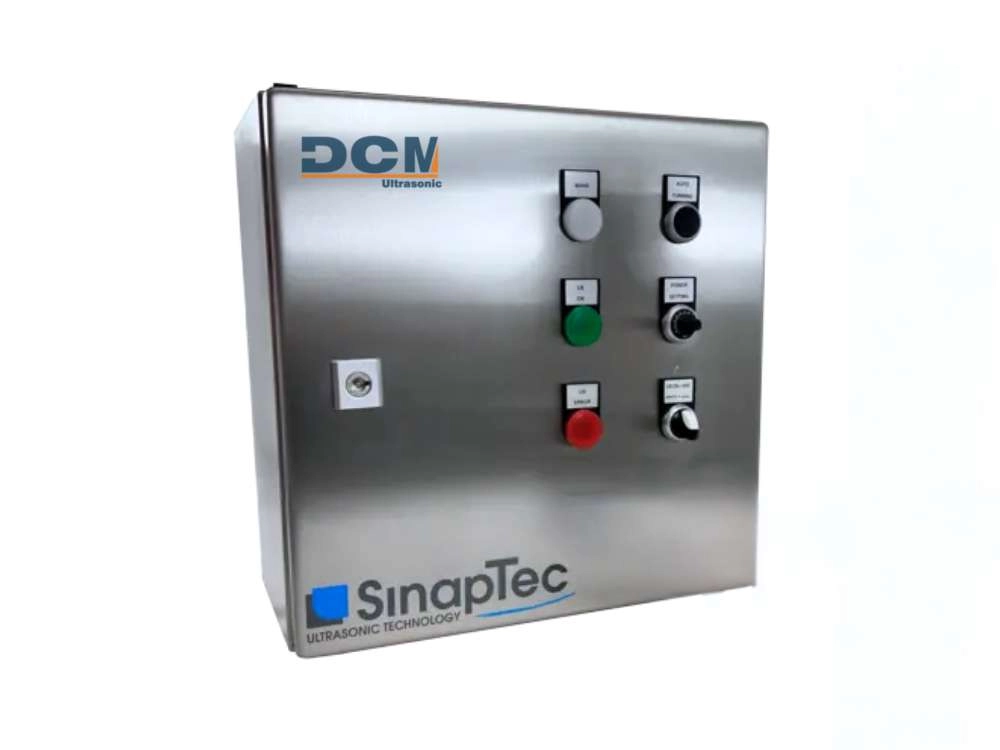

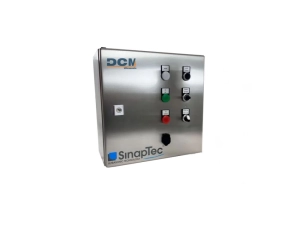

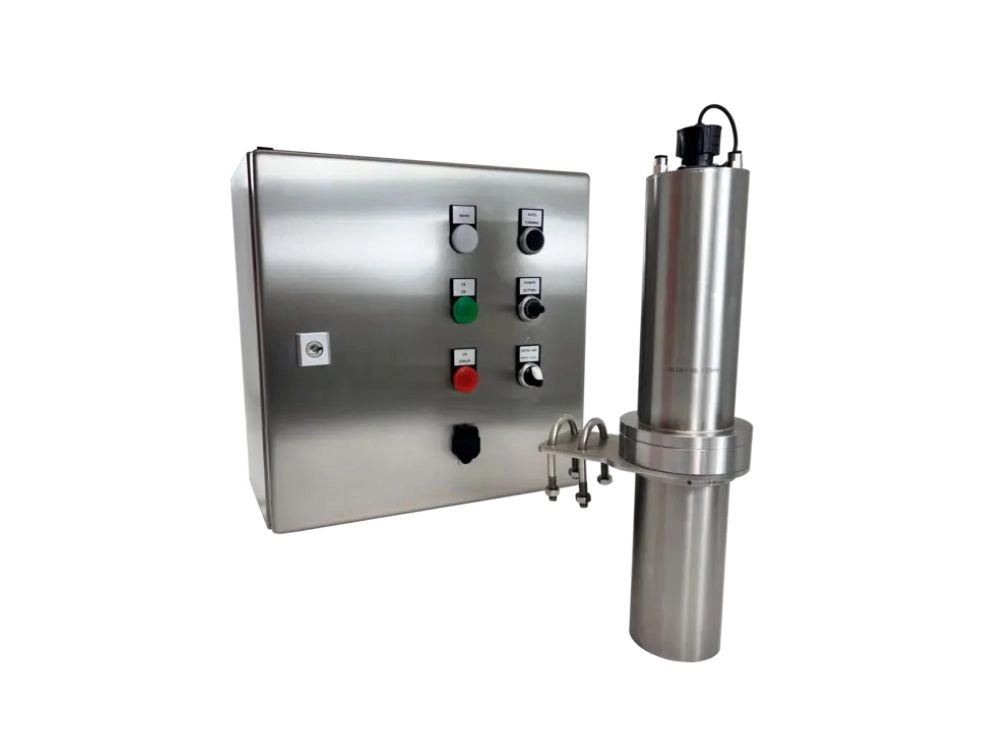

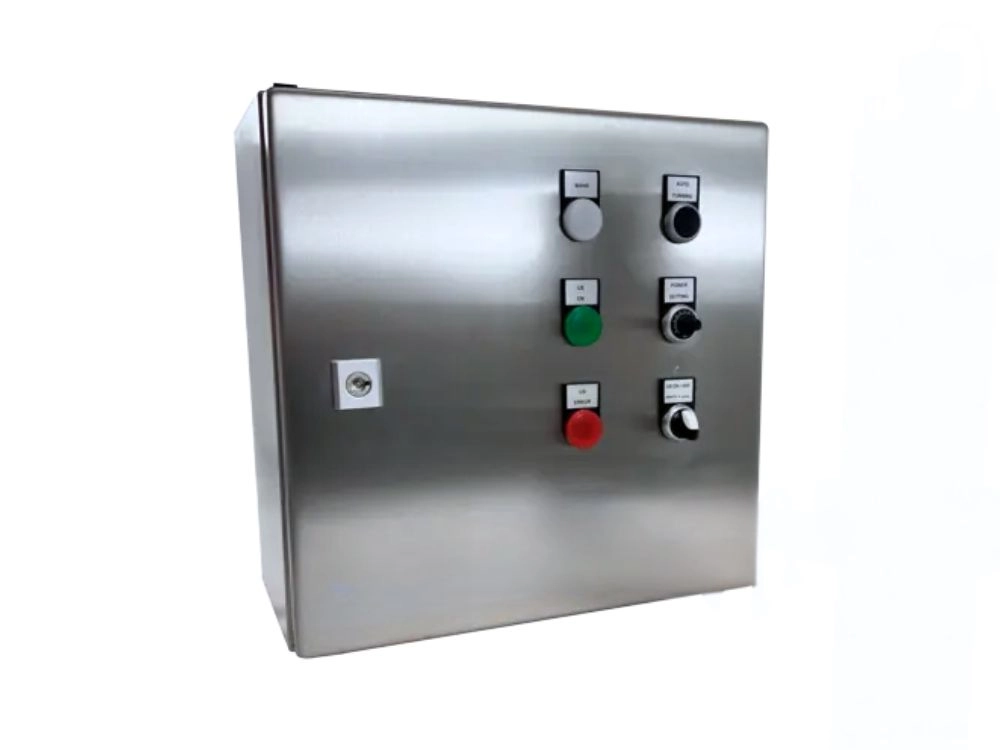

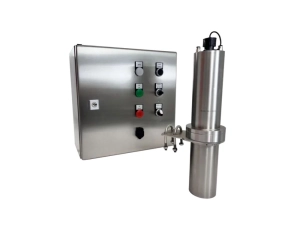

Antifoam System for Foam Control. Our NexTgen Inside line of generators is designed to activate piezoelectric transducers, operating over a wide frequency range, from a few kilohertz to 100 kHz, with a maximum power of 3000 W peak. Color-coded LED buttons allow intuitive identification of the generator's status. To ensure efficient integration into your process, the ultrasonic generator is compatible with various control interfaces, enabling optimal foam management using ultrasonic technology.


NexTgen Software

The NexTgen Start software, included free with all generators, allows you to configure key parameters such as the timer and power, select the operating mode, and view the generator's status and operating frequency in real time.

For more advanced control, the NexTgen Advanced version includes a wide range of features:

• Custom configuration of the built-in control modes: duration, cycle, and timing.
• Graphical representation of key parameters such as power, frequency, voltage, current, impedance, and external sensors, with acquisition capabilities ranging from 1 to 1000 Hz.
• Event logging, including errors and macro modifications.
• Centralized management of multiple generators.
• Advanced diagnostic tools, such as impedance curves.
• Data logger function for detailed monitoring.

Request more information about our defoaming system

Communication Options
PLC integration allows access to NexTgen's functionalities via Ethernet or RS485 networks, enabling control from a PLC or operator display. Thanks to this connectivity, parameters such as the ultrasound cycle, frequency, and power can be adjusted, in addition to utilizing real-time diagnostic tools.

DCM Ultrasonic, official distributors of the defoaming system and technology partners of SinapTec Ultrasonic Technology.
