Pipe Cleaning with an Ultrasonic Bath

Ultrasonic pipe cleaning. The accumulation of sediment, scale, oil, and chemical and biological residues inside pipes represents one of the most common challenges across multiple industrial sectors. From the food industry to the petrochemical industry, keeping pipes clean is key to ensuring operational efficiency, final product quality, and regulatory compliance. In this context, ultrasonic pipe cleaning has positioned itself as an innovative, effective, and sustainable technological solution.

This phenomenon causes a microscopic mechanical action capable of loosening dirt particles stuck to even the most inaccessible places, such as internal bends, joints, elbows, or rusty sections of pipes. Our equipment is equipped with the latest ultrasonic technology to perform effective, fast, and efficient pipe cleaning. Ultrasonic baths are ideal for all types of pipes: plastic pipes, steel pipes, metal pipes, water pipes, and even iron pipes.


Pipe Cleaning with Ultrasonic Technology

It is an effective method for removing deposits and residue from the interior surface of pipes without damaging the material. Ultrasonic cavitation involves the creation and collapse of microbubbles in a liquid, releasing energy that loosens dirt from the pipe surface.

At DCM Ultrasonic, we develop customized industrial solutions for ultrasonic pipe cleaning. Our equipment integrates the latest technology on the market:

• Synchronized digital generators: to ensure maximum cavitation efficiency without interference.
• Customized flow cells: adapted to the geometry and material of each installation.
• PLC and HMI control: simple programming, real-time monitoring, and full connectivity with SCADA systems.
• Stainless steel design: maximum durability even in demanding industrial environments.
• Portable and modular systems: to facilitate the maintenance of complex networks or distributed pipelines.

ULTRASONIC MACHINE FOR PIPE CLEANING


How is ultrasonic technology applied to pipe cleaning?

1. Ultrasonic bath
When pipes are removable, they can be placed in ultrasonic cleaning tanks with submersible emitters. This method is ideal for medium-sized or small pipelines that require offline cleaning.

2. In-situ cleaning with flow cells
For large pipelines or fixed installations, ultrasonic probes or flow cells are used, which are inserted or attached externally. These cells generate ultrasound directly inside the pipe, without the need for disassembly, allowing for optimized in-situ cleaning.

DCM Ultrasonic offers advanced solutions for these types of applications, designing ultrasonic flow cells adapted to different diameters, materials, and operating conditions.


Advantages of Ultrasonic Pipe Cleaning

Unlike other traditional cleaning methods, such as pigging, mechanical cleaning, or harsh chemicals, ultrasound offers several key advantages:

1. Deep and Uniform Cleaning
Thanks to the cavitation generated by ultrasound, a microscopic and homogeneous cleaning action is achieved across the entire internal surface of the pipe, including areas inaccessible to other methods.

2. Removes Tough Residues
Limescale, metal oxides, solidified grease, or polymer residues can be removed without the need to completely dismantle the system or use harsh solvents.

3. Does Not Damage Surfaces
Unlike brushes or abrasive jets, the ultrasonic process is noninvasive. It is ideal for pipes made of stainless steel, copper, PVC, aluminum, polyethylene, or corrosion-sensitive materials.

4. Chemical Savings
Ultrasonic cleaning drastically reduces the use of harsh chemicals, which not only protects the environment but also reduces the risk of internal corrosion and lowers waste management costs.

5. Compatible with Automated Processes
Ultrasonic systems can be integrated into automated maintenance or cleaning-in-place (CIP) lines, streamlining operations, avoiding long downtimes, and allowing for scheduled cleaning.

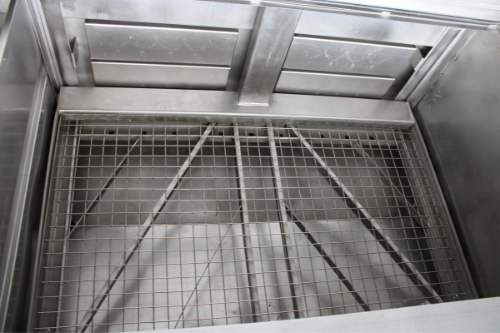

Ultrasonic tank for cleaning pipes.

SEE UCM 1000DL LONG CLEANING MACHINE

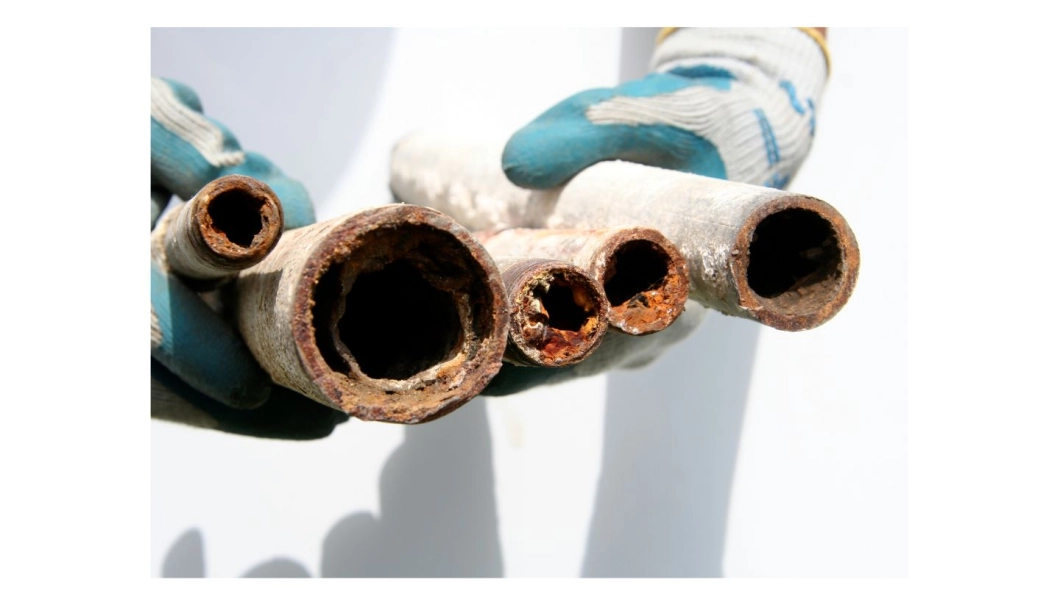

Why do industrial pipes get dirty?

The nature of the residue depends on the type of industry. In general, pipes tend to accumulate a series of contaminants, such as:

• Organic or inorganic waste
• Industrial greases and oils
• Biofilm and biological sludge
• Mineral salts and limescale
• Metallic or oxide particles
• Polymers or paint residues in chemical industries

These residues affect fluid flow, increase pressure, reduce the lifespan of pipes, and increase the risk of cross-contamination, especially in sectors such as food and pharmaceuticals.


Comparison with Traditional Pipe Cleaning Methods

While traditional methods such as manual disassembly, chemical cleaning, or steam cleaning can offer acceptable results, they have several disadvantages:

• Material wear: The continuous use of chemicals or abrasives reduces the lifespan of pipes.
• High maintenance costs: These involve prolonged production downtime and a greater need for technical personnel.
• Environmental risks: Chemical waste disposal must be treated according to strict environmental regulations.

Ultrasonic cleaning, on the other hand, stands out as a sustainable, effective, and cost-effective alternative, adapting to modern maintenance needs.



Efficient Technology for Industry

Ultrasonic pipe cleaning represents a significant advance in industrial maintenance. By offering an efficient, material-friendly, and environmentally friendly solution, this technology allows companies to guarantee the quality of their processes and products, while optimizing operating costs and extending the lifespan of their facilities.

If your company needs an effective and modern solution for cleaning industrial pipelines, don't hesitate to contact DCM Ultrasonic. Our team is ready to advise you and develop an ultrasonic cleaning system fully tailored to your needs.
